Injection-recovery example

This example performs a controlled Bilby injection-recovery run with the GreyRing waveform model.

Folder

examples/injection_recovery/

Structure:

examples/injection_recovery/
  injection_recovery.py
  theory/
    Zed_abs.txt
    Zed_phase.txt
    Sensitivity_curves/
      aligo_O4high.txt

Required files

Place the greybody tables in:

examples/injection_recovery/theory/

Zed_abs.txt
Zed_phase.txt

Place the PSD curve in:

examples/injection_recovery/theory/Sensitivity_curves/

For example:

aligo_O4high.txt

See Theory files for details on the needed structure of the files.

Run

From the repository root:

cd examples/injection_recovery
python injection_recovery.py

The script defines the detector network, injected parameters, priors, waveform generator, PSDs, likelihood, and Dynesty sampler.

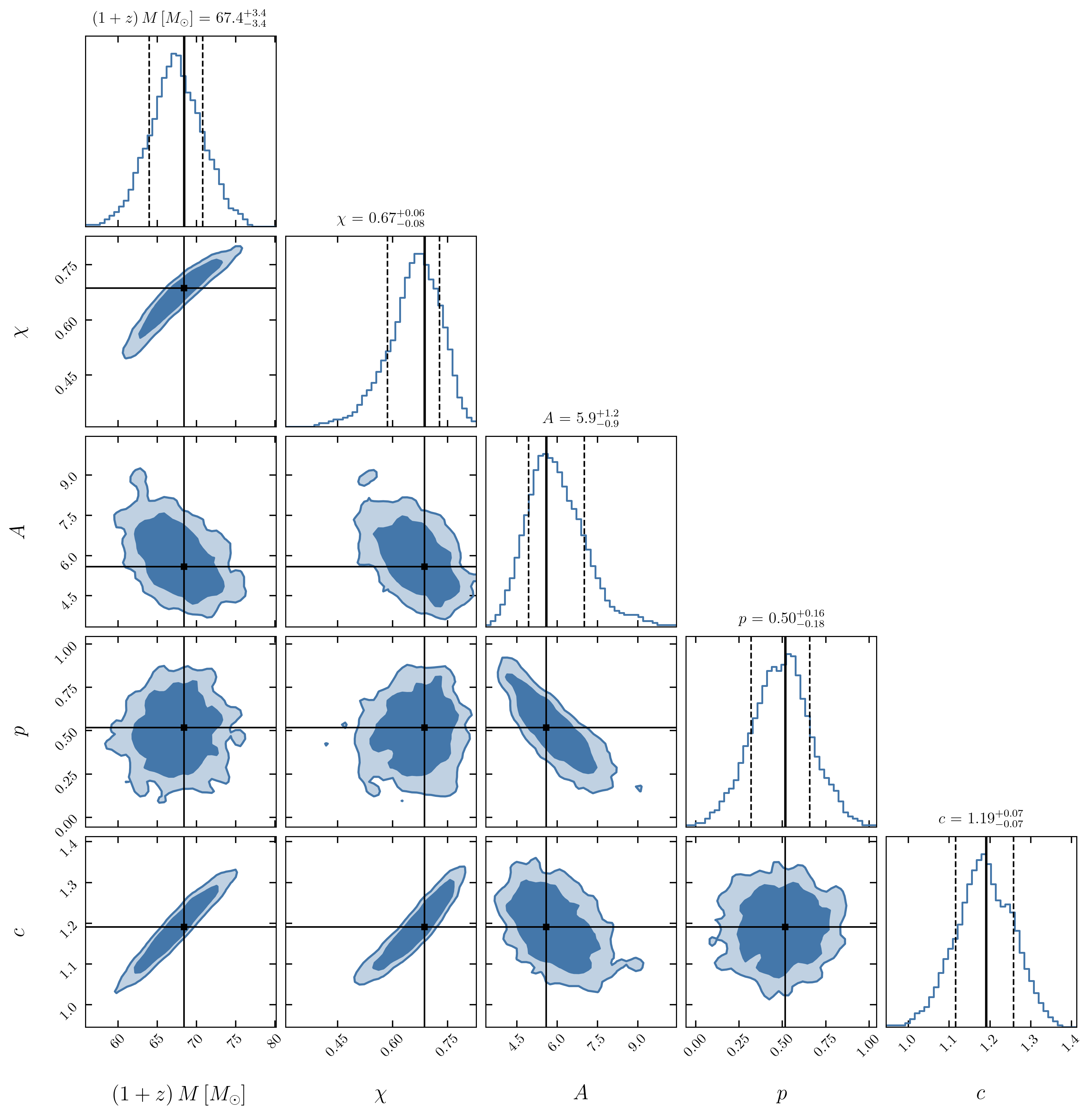

Reference injection run

The figure below shows a representative injection-recovery result for a GW250114-like signal, similar to the example discussed in the paper with an analysis frequency range of [120, 500] Hz.
